TRUSS SECTIONS

We offer linear, triangle and square aluminum truss sections. Our truss sections are made to cater to your event needs and their build quality ensures that they will be sustainable for many events to come. Our truss sections easily connect together and we have all connection parts available. Our aluminum square truss sections are compatible with all major name brand 290x290 size trusses.

CLICK HERE TO VIEW TRUSS ACCESSORIES

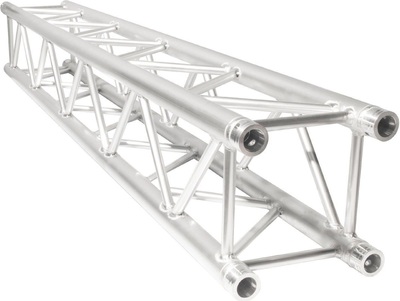

1.64 FT/0.5M Square Aluminum Box Lighting Trussing
$239.99 $117.99


-Length: 0.5 m (1.64 ft). Outer diameter tube: 2 in (50 mm). Dimensions: 11.42 x 11.42 in (290 x 290 mm)
-Diagonal bracing: 0.75 in (20 mm). Centerpoint load: 4,568 lbs (2,072 kg)
-Distributed load: 6,093 lbs (2,764 kg). Wall thickness: 0.08 in (2 mm)
-Weight: 8.45 lbs
-Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup.
-Available in many lengths for mobile entertainers, productions, nightclubs and retail stores

MSRP: $239.99
INTERNET SPECIAL: $117.99 SHIPPED!

In Stock - Ships same or next business day
LK-42 3.28 FT/1.00M Square Box Lighting Trussing Section
$299.99 $197.99


Description
- Length: 1 meter (3.28ft.)
- Aluminum truss section.
- Outer diameter tube: 2in. (50mm.)
- Diagonal bracing tube: 0.75in.(20mm.)
- 290mm.x290mm. dimensions.


MSRP: $299.99
INTERNET SPECIAL: $197.99 SHIPPED!

In Stock - Ships same or next business day
4.92 FT/1.50M Square Aluminum Box Lighting Trussing
$329.99 $199.99


- Length: 1.5 m (4.92 ft). Outer diameter tube: 2 in (50 mm).
- Dimensions: 11.42 x 11.42 in (290 x 290 mm). Diagonal bracing: 0.75 in (20 mm)
- Centerpoint load: 4,568 lbs (2,072 kg). Distributed load: 6,093 lbs (2,764 kg)
- Wall thickness: 0.08 in (2 mm). Weight: 18.4 lbs
- Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup.
- Available in many lengths for mobile entertainers, productions, nightclubs and retail stores


MSRP: $329.99
INTERNET SPECIAL: $199.99 SHIPPED!

In Stock - Ships same or next business day
LK-2 6.56 FT/2.00M Square Box Lighting Trussing Section
$399.99 $239.99


Description
- Length: 2 meter (6.56ft.)
- Aluminum truss section.
- Outer diameter tube: 2in. (50mm.)
- Diagonal bracing tube: 0.75in.(20mm.)
- 290mm.x290mm. dimensions.


MSRP: $399.99
INTERNET SPECIAL: $239.99 SHIPPED!

In Stock - Ships same or next business day
8.20 FT/2.5M Square Aluminum Box Lighting Trussing
$599.99 $349.99


Description:
- Length: 2.5 m (8.20 ft). Outer diameter tube: 2 in (50 mm)
- Dimensions: 11.42 x 11.42 in (290 x 290 mm). Diagonal bracing: 0.75 in (20 mm)
- Centerpoint load: 4,568 lbs (2,072 kg). Distributed load: 6,093 lbs (2,764 kg)
- Wall thickness: 0.08 in (2 mm). Weight: 28.45 lbs
- Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup.
​- Available in many lengths for mobile entertainers, productions, nightclubs and retail stores


MSRP: $599.99
INTERNET SPECIAL: $349.99 SHIPPED!

In Stock - Ships same or next business day
LK-3 9.84 FT/3.00M Square Box Lighting Trussing Section
$499.99 $299.99


Description
- Length: 3 meter (9.84ft.)
- Aluminum truss section.
- Outer diameter tube: 2in. (50mm.)
- Diagonal bracing tube: 0.75in.(20mm.)
- 290mm.x290mm. dimensions.


MSRP: $499.99
INTERNET SPECIAL: $299.99

click HERE to inquire about shipping
6.56 FT/2.00M Square Box Lighting Trussing Section Fits Global Truss F34 SQ-4112
$569.99 $244.99


Description
- Machine washable, Satin/Sheen finish Lycra/Spandex truss cover/ truss sock.
- Manufactured from high-grade and light weight Aluminium , which is easy for transportation and setup.
-Independently tested and TUV- certified for safety and uniformity.
- Compatible with many TRUSS accessories to create an astonishing and costume presentation.
​

MSRP: $569.99
INTERNET SPECIAL: $244.99 SHIPPED!

In Stock - Ships same or next business day
Set of two (2) 6.56FT (2 METERS) STRAIGHT SQUARE ALUMINUM TRUSS SEGMENTS
$789.99 $499.99


Description

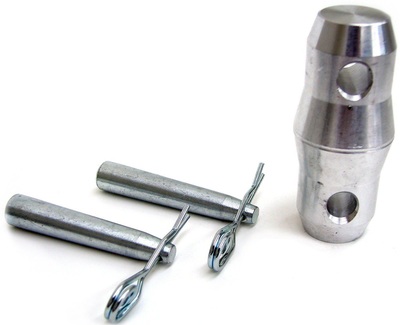

- Includes two 6.56' aluminum square truss segments and one set of coupler connection hardware .
- Manufactured from high-grade and light weight Aluminium , which is easy for transportation and setup.
-Independently tested and TUV- certified for safety and uniformity.
- Compatible with many TRUSS accessories to create an astonishing and costume presentation.

MSRP: $789.99
INTERNET SPECIAL: $499.99 SHIPPED!
In Stock - Ships same or next business day
LK-S5 5 Ft Extension Lighting Truss System W/ Connector Pole + Bolts
$129.99 $84.99


Description
- Heavy duty metal lighting truss 5' extension I-beam.
- Perfect for extending your existing truss system.
- 1.5" diameter tubing on truss section.

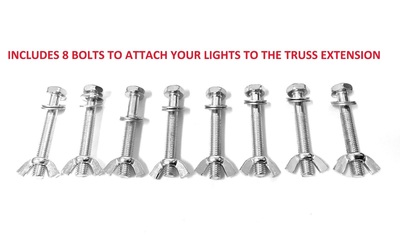

- Includes: T-connector, two inside sleeves with large knobs and bolts, one connector pole, 8 bolts with wing nuts to attach lights to extension.


​MSRP: $129.99
INTERNET SPECIAL: $84.99 SHIPPED!

In Stock - Ships same or next business day

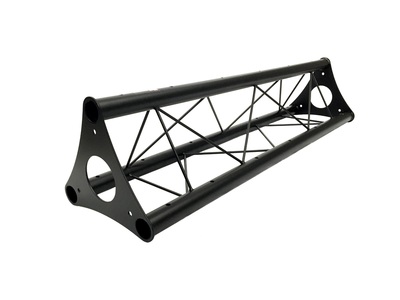

LK-TT1 TRUSS Triangle Truss Extension 5ft Section Lighting stand DJ Black Metal Rubber Ends
$199.99 $99.99


Description
- 5' black metal triangle truss section.
- 1.5" diameter tubing.
- 8" from inner part of one tube to inner part of another tube.

Click HERE to view the center connection part

MSRP: $199.99
INTERNET SPECIAL: $99.99 SHIPPED!

In Stock - Ships same or next business day
LK-L3FA 3' Wide Triangular Trussing Mobile DJ Lighting Bolt Truss System Triangles
$199.99 $99.99


Description

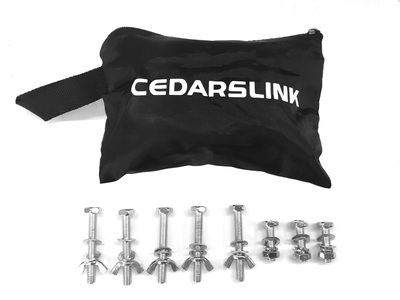

- Includes one 3' metal triangle truss section with connection hardware, bolts to connect your lights and a carrying case.
- Black metal.
- 1.5" pipe diameter
- Truss sections are 10" overall width.


MSRP: $199.99
INTERNET SPECIAL: $99.99 SHIPPED!

In Stock - Ships same or next business day
5ft Lighting Triangle Bolted Truss 5' span Stand Universal DJ Metal
$199.99 $129.99


Description
-Set of 1 (57") triangle bolted truss. this medium duty triangle truss section creates a 5ft span.
-You can mount up to 200lbs evenly.
-Truss pipes are 1.5" in diameter.
-Truss sections are 10" in overall width.
-Connect multiple truss sections together using connection bolts.
MSRP: $199.99
INTERNET SPECIAL: $129.99 SHIPPED!

In Stock - Ships same or next business day
Two 5' Wide Triangular Trussing Mobile DJ Lighting Bolt Truss System
$299.99 $179.99


Description
- System includes two 5ft. black metal triangle truss sections with connecting hardware.
- 5ft. or 10ft. wide configurations.
- 1.5" pipe diameter.
- Truss sections are 10" overall width.


MSRP: $299.99
INTERNET SPECIAL: $179.99 SHIPPED!

In Stock - Ships same or next business day
3x 5ft Lighting Triangle Bolted Truss 15' span Stand Universal DJ Metal
$349.99 $229.99


Description
- System includes three 5ft. black metal triangle truss sections with connecting hardware.
- 5ft, 10ft, or 15' wide configurations.
- 1.5" pipe diameter.
- Truss sections are 10" overall width.


MSRP: $349.99
INTERNET SPECIAL: $229.99 SHIPPED!

In Stock - Ships same or next business day
3x 6.56 ft 2 Meter Lighting Triangle Bolted Truss Stand Universal DJ Metal Black
$499.99 $399.99


Description
- System includes three 6.56ft. (3 meter) black metal triangle truss sections with connecting hardware.
- ~6.56ft, 13ft, or 20' wide configurations.
- 1.5" pipe diameter.
- Truss sections are 10" overall width.


MSRP: $499.99
INTERNET SPECIAL: $399.99 SHIPPED!

In Stock - Ships same or next business day


​©
